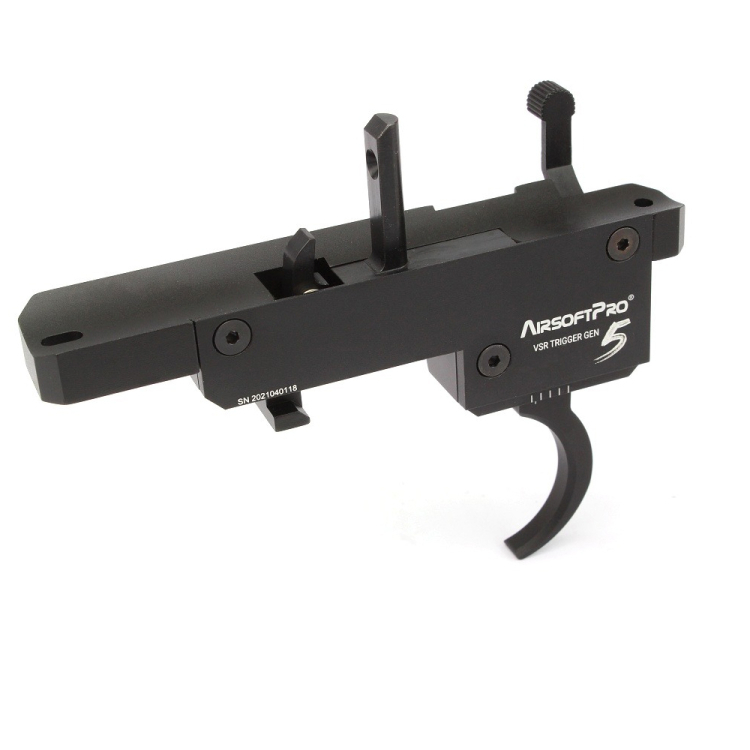

VSR ZERO UPGRADE TRIGGER - GEN. 5

A durable and reliable trigger mechanism is a fundamental prerequisite for a successful upgrade of a sniper rifle. The commonly supplied mechanisms are only sufficient for basic springs. However, using a stronger spring significantly increases the likelihood of damage. Unfortunately, this also applies to those made from cheap metal alloys. Only a machined steel mechanism can ensure the greatest durability.

Rifles operating on the Marui VSR system usually do not have the best piston sear. It is captured only by a small edge and at a 45-degree angle. This is relatively sufficient for basic weak springs, but they cannot withstand any stronger springs. Moreover, after pulling back the bolt, the piston is lifted (caused by the 45° catch) and misaligns in the cylinder. It can get stuck in the cylinder and prevent the return of the bolt to its original position. It can also cause an accidental discharge.

The new metal CNC trigger mechanism has a completely different solution. The piston sear captures at an angle of 90 degrees, or rather 0 degrees, hence the designation ZERO. It doesn't misalign in the cylinder, the capture area is larger, and above all, it can withstand strong springs.

SPECIFICATIONS:

• Body made by CNC machining from light, but durable aluminum alloy 6061-T6.
• Aluminum parts with high quality matt anodized finish
• Piston sear, trigger sear and the spring guide stopper are made of steel and hardened to HRC 28-32.
• The top of the trigger is equiped with ball bearing for the smoother trigger moove.
• Trigger position is now adjustable.
• Axis are made of stainless steel.
• Two torsional springs safety returns catch to the original position.
• Whole trigger is made of 28 parts.
• Tested up to M170 springs.
• Easy to install under 10 minutes.
• Package include trigger , assembly screws and safety lever assembly

ZERO UPGRADE TRIGGER set is compatible with:

• Marui VSR-10

• JG BAR-10
  (please note that newest models use M4 assembly screws. Out trigger uses M3 so some modification may be needed)

• Well MB02, MB03, MB07, MB09, MB10, MB11

• CYMA CM.700
  (cannot use safety lever)
• CYMA CM.701
• CYMA CM.708

Doesn't fit on M24, Marui AWS, Well MA4401,4402 or Well L96.
