Leviathan - V2 to stock

Jefftron has once again outdone itself!

Introducing a novelty in the form of a microprocessor-controlled mosfet with Bluetooth, adding new shooting modes, smooth rate of fire adjustment, piston pre-cocking, active motor brake, low battery indication, etc.

All of this is accessible through a mobile application, available for both Apple and Android users.

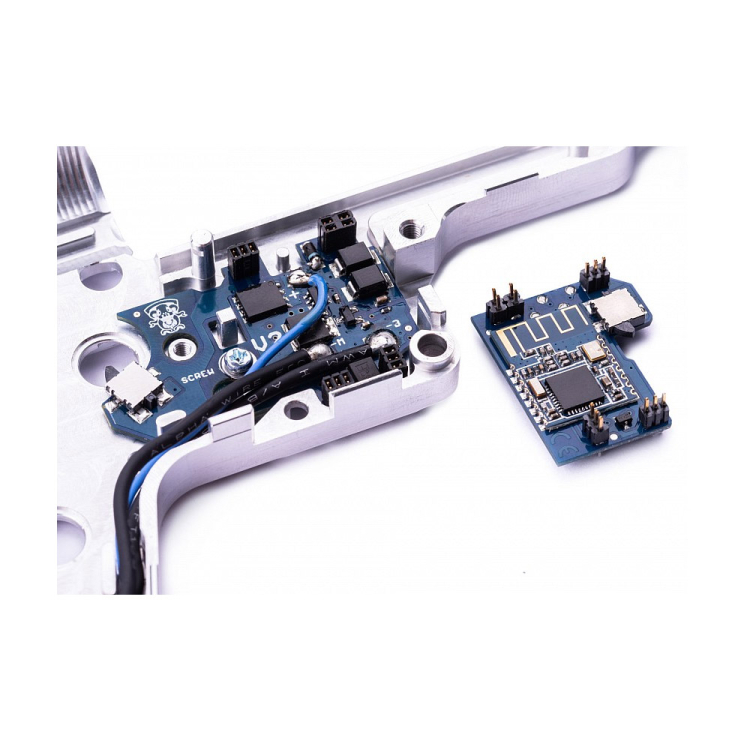

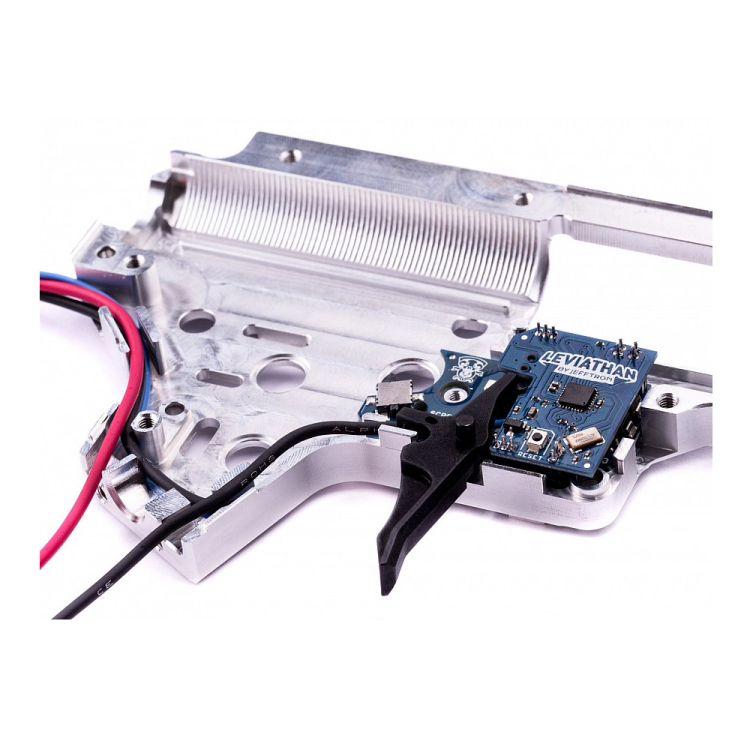

Fully integrated device inside the version 2 mechabox, replacing the original trigger contacts along with wiring leading towards the stock, equipped with a DeanT connector - no soldering required.

MAIN FEATURES:

• Introduces new shooting modes independently for each selector position (SAFE - SEMI - AUTO)
• Adjustable burst shooting in the range of 2 - 20 rounds
• Reduced rate of fire introduces pauses, providing quick trigger response similar to real firearms
• Adjustable motor active braking force with the option to disable it
• Piston pre-cocking function for an instant shot in SEMI mode
• Shot delay function, preventing consecutive shots for 0.1 - 4.0 seconds to simulate recoil or reloading.
• Low battery indication for 2S - 4S li-pol and 3S - 4S li-fe
• Application with features such as saving parameters to profiles, displaying current voltage, and battery charge indicated by a colored bar.
• Error log displays lifetime errors of Leviathan - V2
• Leviathan - V2 monitors current, voltage, and temperature to prevent damage in case of any issues
• Utilizes vibration and motor beep in the stock for user signaling
• Setting changes are instantly saved to the Leviathan - V2 memory, ensuring programming is not lost when disconnected from the smartphone or battery

SHOOTING MODES SELECTION:

Independent of the selector position (SAFE - SEMI - AUTO)

• SAFE: secured
• Semi: one trigger press, one shot
• Semi/BurstX: short press shoots once, holding the trigger shoots the selected burst
• Double trigger: shoots once when the trigger is pressed and again when released
• BurstX: shoots a burst when the trigger is pressed
• BurstX/BurstY: short trigger press shoots burstX, long press shoots burstX+burstY
• BurstX/Full: short trigger press shoots burstX, long press initiates full auto
• Full: full auto

TECHNICAL SPECIFICATIONS:

• Simple installation into version 2 mechabox, designed according to Tokyo Marui's switch concept
• In most cases, no modifications are needed in the mechabox or Leviathan - V2
• Microswitch activated with every piston cycle for precise shot timing
• CNC trigger, included in the package, with a screw for shorter travel. This allows for a very fast shot after pressing the trigger
• Thanks to advanced electronics, Leviathan - V2 can be used in guns with any common upgrades and rates of fire
• Complete wiring allows for quick and easy installation in the gun, sufficiently long for all types of guns with the battery in the rear. No soldering required
• Power wires are 1.5 mm2 (AWG16) with thin and stiff MPPE insulation, blue wire is 0.34 mm2 (AWG22) with MPPE insulation
• Power wires have an external diameter of only 2.06 mm and blue 1.24 mm
• Length of wires between the end of the mechabox and the connector is 290mm
• Encased in lacquer, protecting the device from water damage
• For proper pre-cocking function, the mechabox must have a functional anti-reversal latch
• Designed for all commonly used batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
• The device increases the gun's rate of fire and battery life compared to the original wiring in the gun
• With active motor braking, the piston is not partially cocked during shooting, the spring is not fatigued by partial compression, and internal parts are not stressed
• For high rate of fire guns, active braking solves the issue of multiple shots in semi-automatic mode
• Motor braking effect is strongest with a loaded motor with neodymium magnets
• Remove from the mechabox: cutoff lever, trigger, trigger contacts, and trigger stop - Leviathan - V2 does not require them

In the package, you will find:

• Leviathan - V2 module with complete wiring
• Screw with washer to secure the device in the mechabox
• CNC trigger with adjustable travel
• Adjustment screw for trigger travel
• Foam for securing the device in the mechabox
• Installation manual

SAFETY WARNING:

• Technical knowledge is required for installing the device into the mechabox!
• Please read and follow all instructions to prevent damage to the device.
• Short circuit or incorrect battery connection will immediately damage the device, and such damages are not covered by the warranty. It can also lead to battery ignition or explosion!
• Disconnect the battery when not using the weapon! Otherwise, you will completely discharge the battery. The device still consumes a small amount of current.
• Do not connect the battery if the weapon is pointed at you, another person, or an animal!
• Do not modify, repair, prevent spilling or subject Leviathan - V2 to temperature shock.

The trigger is not included in the package!

You can use any trigger from the Retro Arms brand.
